The Eliminator

2020 series

Proven, then improved

With over 10,000 hours of research and development across twelve years, the Eliminator has proven itself time and again. The 2020 edition takes it further: a higher-torque hydraulic motor for greater working depth and better ground following, and self-cleaning tynes that keep working when the going is rough.

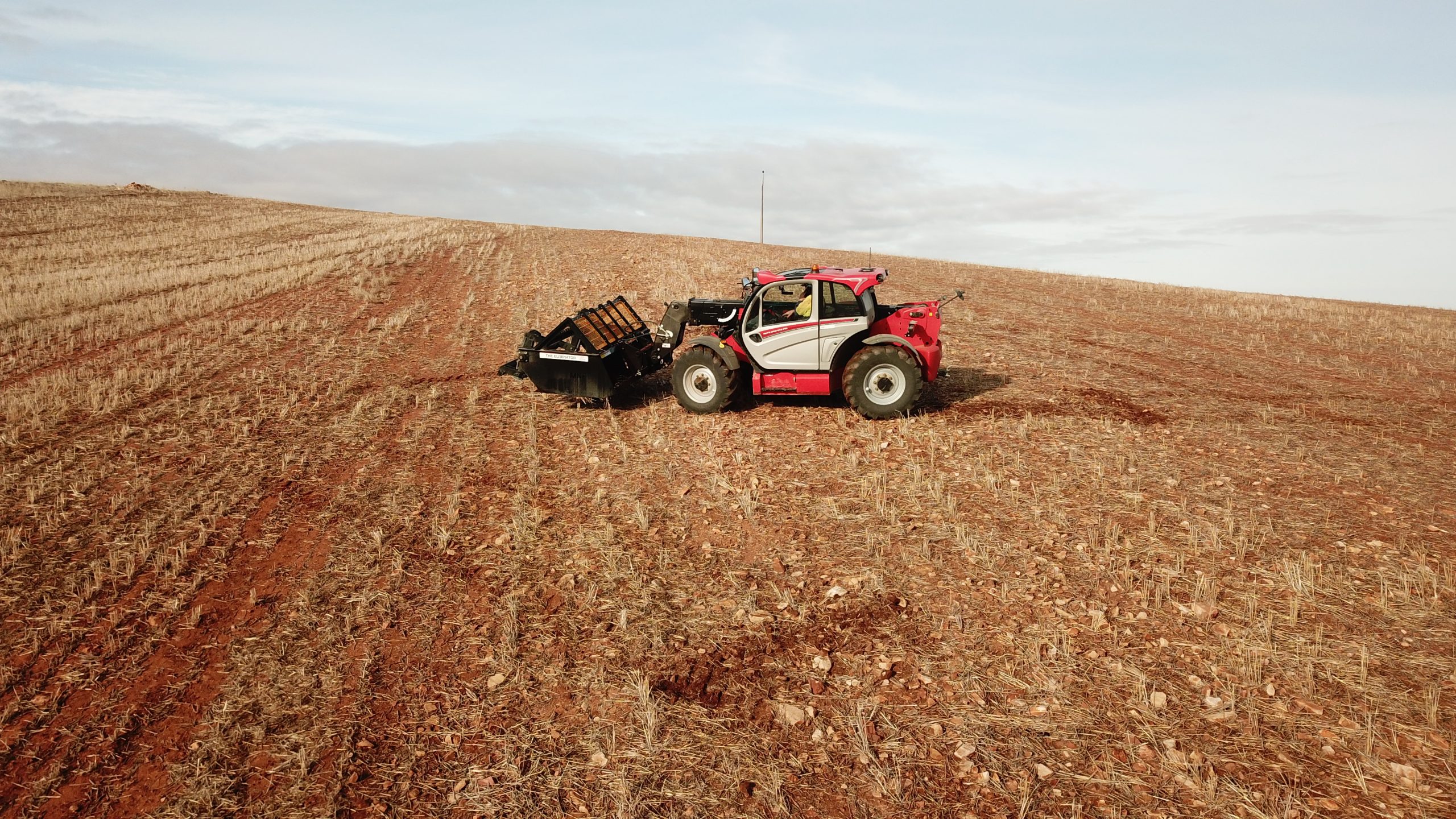

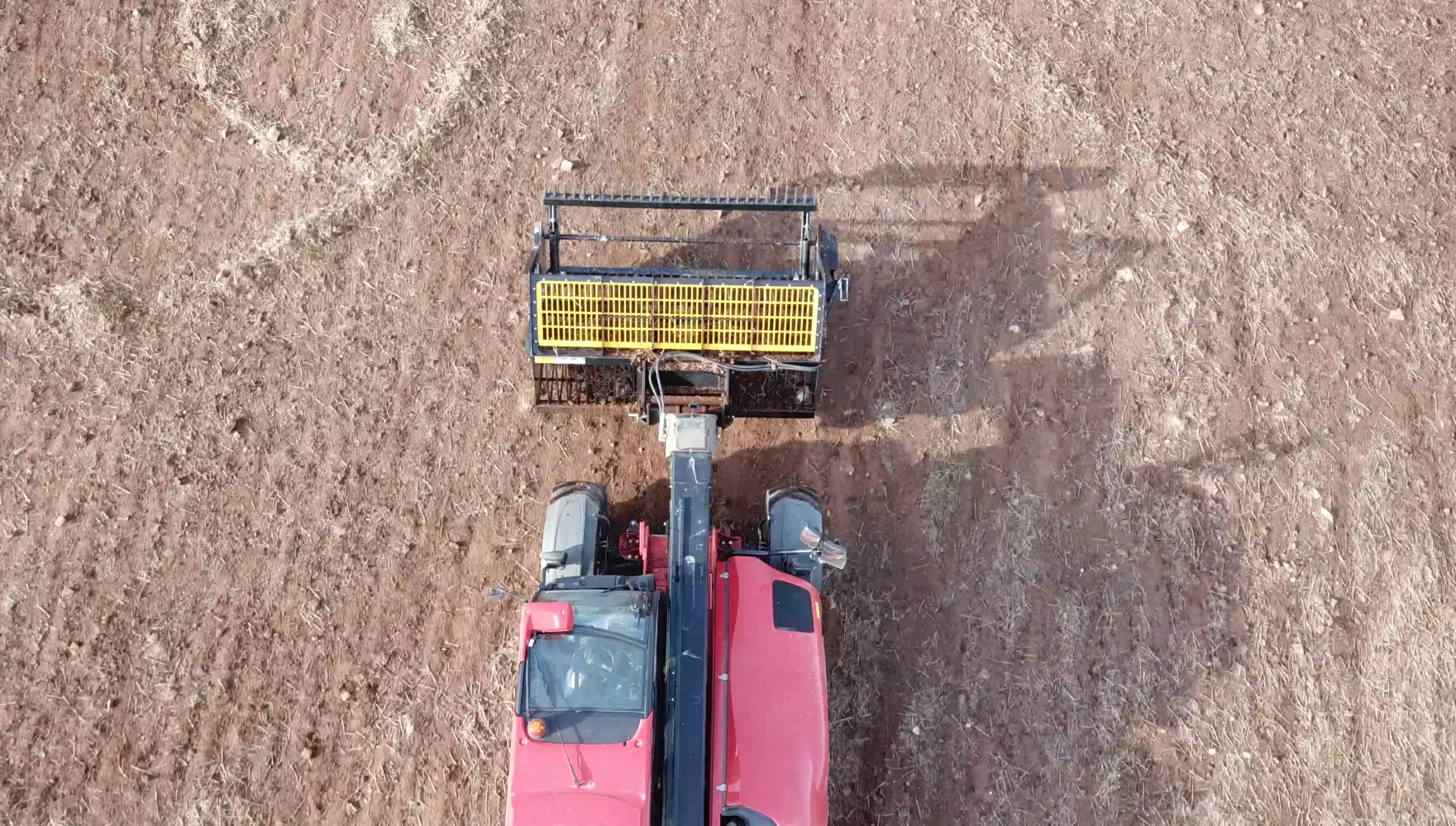

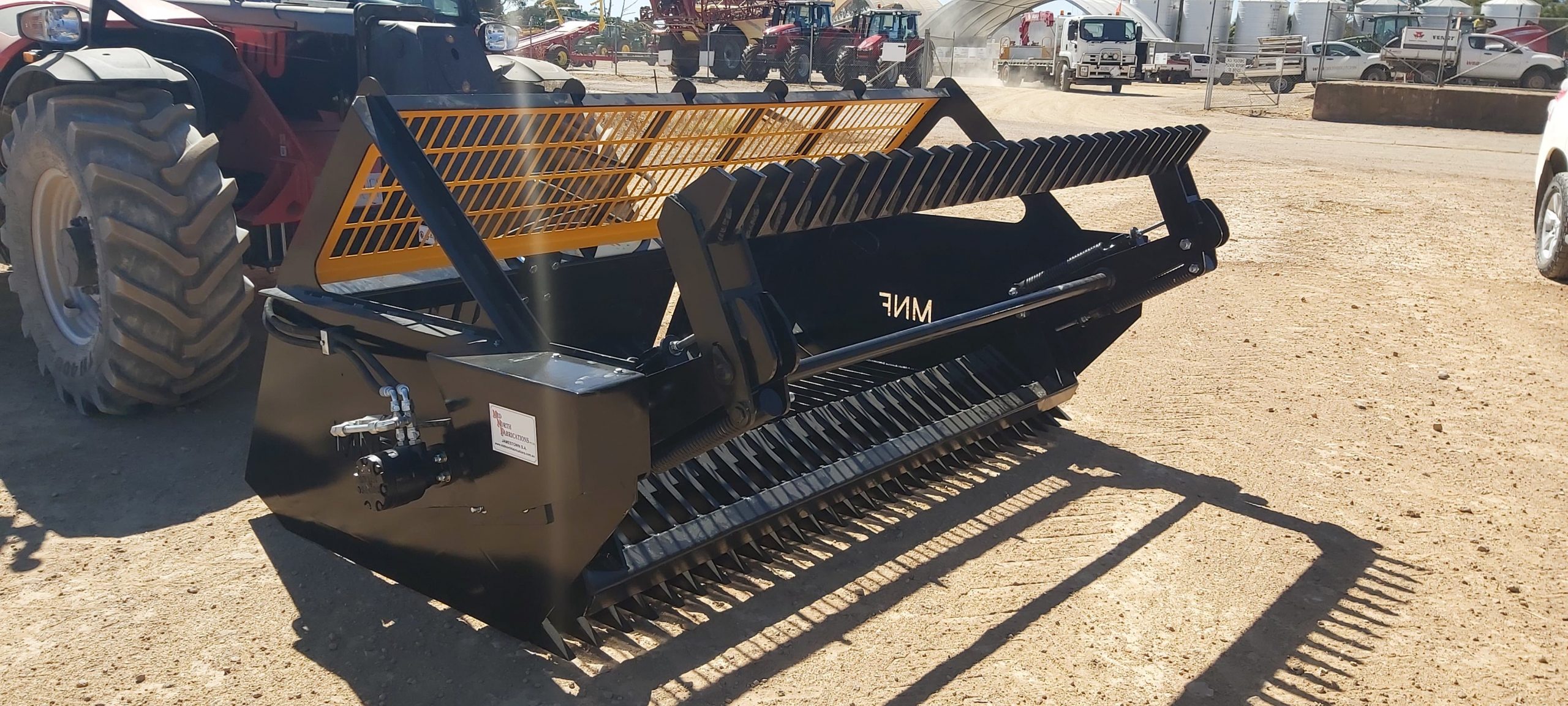

Fitted to a front-end loader or telehandler with 2 t lift capacity, the Eliminator clears stone straight from the paddock: a hydraulically driven reel with pick-up teeth sweeps rock into the bucket while dirt falls through the laser-cut screen. Run the bucket on or just above the ground, set the reel to around 40–60 rpm depending on whether stone is isolated, scattered or rowed, then lift, crowd forward and tip. It attaches with a standard coupler plate and two hydraulic hoses.

Specifications

Bucket sizes

8 ft and 10 ft

Overall width

2.5 m (8 ft model)

Pick-up width

2.1 m (8 ft model)

Height

1.2 m

Weight

1.04 t

Loader required

2 t lift capacity

Reel speed

Approx. 40 rpm for scattered stone, 60 rpm for rowed stone (flow-control adjustable)

Bearings

Heavy-duty double-row roller bearings with taper-lock sleeves

Drives

All drives on taper locks

Hydraulics

High-torque hydraulic motor (2020 series) for greater depth and better ground following

Screen

Durable laser-cut screen

Tynes

Self-cleaning pick-up tynes — no jams

Hitch

Bolt-on hitch adapter plate with solid infill to protect your machine

Wear parts

All ground-engaging parts in Bisalloy high-wear steel; pivot pins and main shaft in high-tensile bar

Certification

ISO & SCA certified
